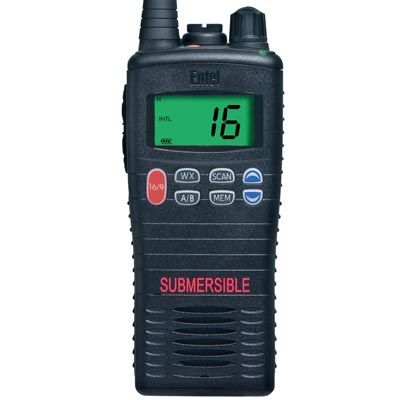

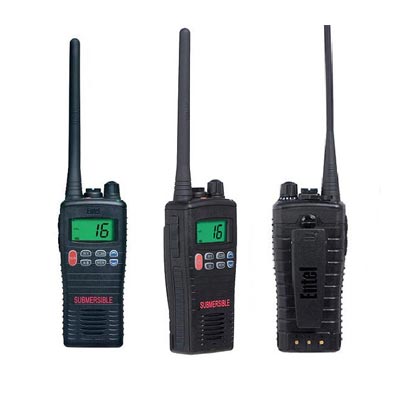

ENTEL HT Series Land
Rugged, designed for gloved hand use and with exceptionally loud audio, Entel’s HT commercial grade portable radios are specifically designed to withstand the
everyday rigours of the outdoor workplace.
- HT Series 2.0 - a model for every application. From entry level
to sophisticated MPT1327 trunked variants, the HT Series 2.0 is
built without compromise to deliver loud and crisp audio using
the latest compander noise reduction technology - Submersible – conforming to European rating IP68, the HT
Series 2.0 offers the highest submersibility rating of any two-way
portable radio. Uniquely able to withstand total immersion in
water to a depth of 5 metres for 1 hour, Entel’s HT Series 2.0
radios are therefore extremely resistant to corrosion, more than a
match for the likely hazards encountered in any field of operation. - Commercial Grade Construction - exceeding MIL STD
810C/D/E/F rating for tough enduring performance the HT Series
2.0 is designed to withstand shock, vibration, dust and moisture,
ensuring many years of trouble free use in the most hostile
environments. - Simple Or Sophisticated - you choose. Need simple speech
communications? Then our entry level PMR radios will meet all
your needs. Entel’s mid level radios give you all the facilities you
might expect from our competitors’ products, while our top of
the range radio is arguably the most versatile radio you can buy - Intelligent Lithium-Ion Battery With Built-In Charge
Cycle Monitoring - this very latest technology gives you four
essential advantages:
1) For your convenience, the HT Series 2.0 will count the charge
cycles of your battery pack, warning you when it is nearing the
end of its life. Models equipped with an LCD screen will also
display the battery charge count
2) Extended duty cycle
3) Not prone to the dreaded memory effect that Nicad and
Ni-MH battery packs suffer from, therefore no need to fully
discharge your battery pack before charging
4) Stores a charge up to three times longer than a Nicad battery
ATEX Approved IIC - The HT900 range of ATEX certified
portables meets IIC T4, the most stringent ATEX ratings as
required by the EU directive 94/9/EC. For full details, refer to the
ATEX data sheet available here: www.entel.co.uk/atex.
ATEX Approved IIA - The HT800 range of ATEX certified
portables meets IIA T4 with 4 watts RF power, for those users
not restricted to the IIC 1 watt regulatory classification.
IECEx Approval - The HT500 range of intrinsically safe certified
portables is suitable for those users who do not need to comply
with the European ATEX standard.
- Frequency range VHF Low-Band 66 to 88MHz
Frequency range VHF High-Band 136 to 174MHz
Frequency range UHF 400 to 470MHz
Frequency range UHF UP Band 450 to 520MHz - Operating Voltage 7.4V
Battery Li-Ion 2000mAh
(1800mAh ATEX & IECEx)
Weight (with battery) 277g
Dimensions* 130mm (h) x 59.5mm (w) x 37mm(d)
Frequency Stability 2.5ppm
Operating Temperature -20 to+ 55°C
Dust and Liquid Intrusion IP68 sumbersible 2 metres for 4 hours
Drop, Packing, Vibration & Shock MIL-STD 810C/D/E/F - * Dimensions are based upon a radio with an attached battery, excluding
knobs, antenna and protrusions.
For a full & detailed specifi cation, please visit our website - Power Output VHF (HI/LOW) 5W / 1W Power Output UHF (HI/LOW) 4W / 1W Power Output ATEX IIC 1W Power Output ATEX IIA (HI/LOW) 4W / 1W Power Output IECEx (HI/LOW) 4W / 1W Modulation Type 8K0G3E / 16K0G3E (12.5 / 25KHz) Receiver Sensitivity Better than -118dBm 12dB Sinad Rated Audio Output 1W Intermodulation -42dBm Adjacent Channel Selectivity 60 / 70 (12.5 / 25KHz) Spurious Response Rejection -37dBm Spurious Radiations 2.0nW/20nW <1GHz/>1GHz
