IC V80

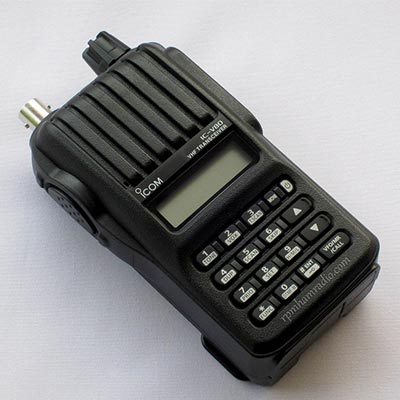

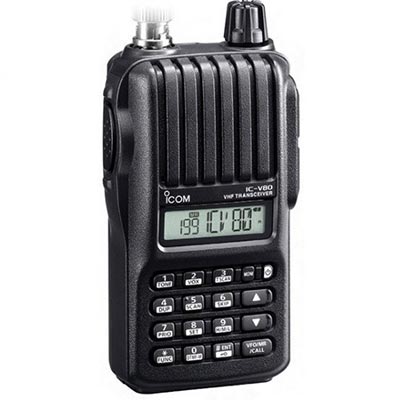

Icom radios are built tough, Icom’s most economical 2M, is no exception. The IC-V80 military rugged handheld offers water resistance and superior protection against dust and dirt (IP54). Not only compact and rugged, the V80 comes with plenty of talk power at 5 watts. The IC-V80 is ideal for your most challenging on-the-go ham operations.
Rugged construction
The dust protection and water-resistance equivalent to IP54 provides reliable operation for practical outdoor operation. The IC-V80 HD tested to and passed 11 categories of MIL-STD-810 environmental tests.
Loud audio
The IC-V80 uses the BTL (bridge-tied load) amplifier that doubles the audio output. Every ham knows that power = current × voltage. The 36mm large speaker delivers 750mW of loud and intelligible audio*, making it great for noisy environments.
Other features
- 5 character alphanumeric display
- Built-in CTCSS/DTCS
- Internal VOX
- WX channel and weather alert function
- Program, memory, skip, priority and tone scans
- Power save function
- BNC type antenna connector
- Automatic repeater function
- TOT (time out timer) setting
- Repeater lockout and busy channel lockout
- Direct keypad frequency entry
- DTMF memory channels
- Auto power off
- LCD backlight
- Wide/narrow channel spacing
General
Frequency range Frequency range
- Tx 144–148 MHzRx 136–174 MHz
Type of emissions
- F2D/F3E (FM)
No. of memory channels
- 207 (incl. 6 scan edges and 1 call)
Frequency stability
- ±2.5ppm (-20°C to +60°C) at 25° C
Operating temperature range
- 20°C to +60°C; –4°F to +140°F
Power supply requirement
- 7.2 V DC
Antenna impedance
- 50Ω (BNC)
Dimensions(proj. not incl.)
- 58 × 112 × 30 mm; 2.28 × 4.41 × 1.18 in
Weight (approx.)
- 140g; 4.9oz (without battery pack)
360g; 12.7oz (with BP-264 and FA-B2E)
