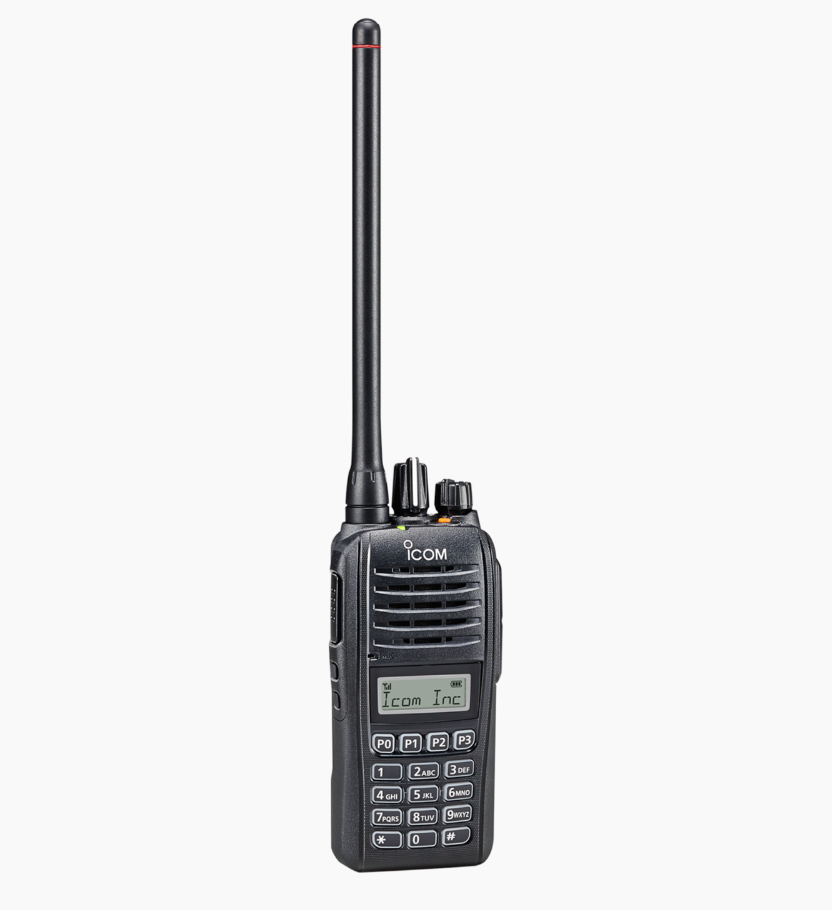

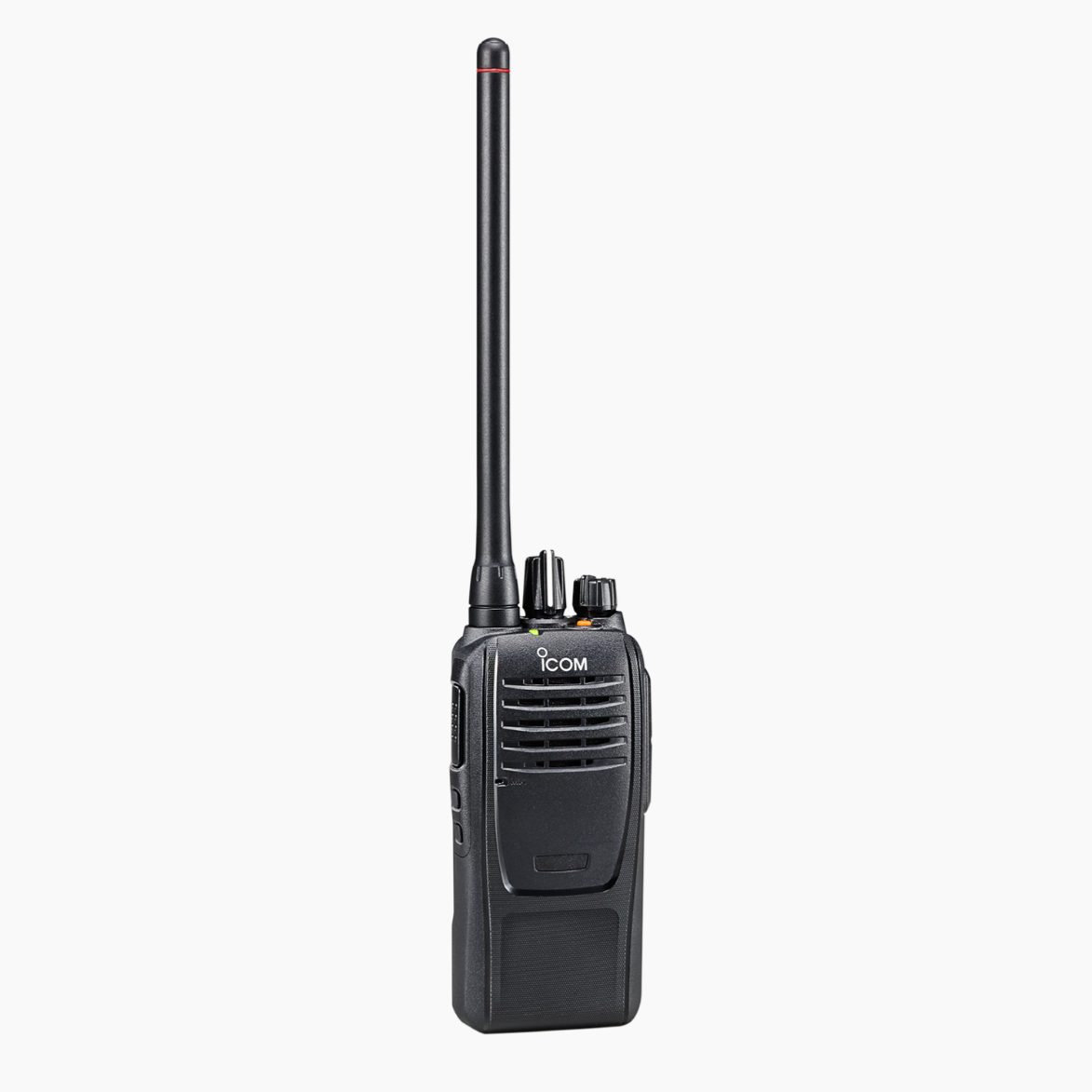

Icom IC-F1000 / F2000 Series

Icom IC-F1000 / F2000 Series – Little Radio, Big Sound!
Class Leading 1500 mW Audio and Full of Great Features.

Icom Custom High Power Handling Capacity Speaker for 1500 mW Powerful Audio

Optional 1500 mW Speaker-Microphone, HM-222HLWP*

Compact, Waterproof Durable Design (IP67 and MIL-STD-810-G)

Enhanced Emergency Safety with Built-in Motion/Stationary Detection Sensor

128 Channel Capacity with Eight Zones (Simple Type and Ten-Key Type)

Built-in 2-Tone, 5-Tone, CTCSS and DTCS

MDC and BIIS Compatible

16-Code Inversion Voice Scrambler

Man Down and Lone Worker Functions
Channel Announcement

General Features

  • 136–174, 335–380, 400–470, 450–512, 450–520 MHz versions
  • 1500 mW large volume audio from Icom custom speaker
  • Improved sound clarity
    Compact (52.2 × 111.8 × 24.5 mm; 2.1 × 4.4 × 1.0 in) and lightweight (240 g; 8.5 oz with BP-279)
  • IP67 waterproof and dust-tight protection
  • Tested to 12 categories of MIL-STD-810-G environmental tests
  • DTMF autodial memories
  • 16-position rotary selector and ON/OFF volume knob
  • “Shift key” function increases number of programmable key assignments
  • Up to 14 hours of operating time with supplied BP-279 battery pack
  • Eight character alphanumeric display (Ten-keypad/simplekeypad versions)
  • Three color LED
IC-F1000T/SIC-F1000IC-F2000T/SIC-F2000
Frequency coverage*
(*Varies according to version)		136–174 MHz

400–470 MHz (ALL)
450–512 MHz (USA)
450–520 MHz (EXP)

335–380 MHz (EXP)
400–470 MHz (ALL)
450–512 MHz (USA)
450–520 MHz (EXP)

Number of channels

128 channels/ 8 zones

16 channels128 channels/ 8 zones16 channels
Type of emission


16K0F3E*/11K0F3E (USA/EXP)

16K0F3E/14K0F3E/8K50F3E (EUR)

Power supply requirement

7.5V DC nominal

Current drain
(approx.)		Tx

1.3A

Rx

500 mA /77 mA
(Max. audio (internal SP)/Standby)

500 mA /80 mA
(Max. audio (internal SP)/Standby)

Antenna impedance

50Ω

Operating temperature range
(Radio specification)

–30°C to +60°C; –22°F to +140°F (Radio specification)
(USA/EXP)

–25°C to +55°C (Radio specifi cation)
(EUR)

Dimensions
(W × H × D; Projections not included)

52.2 × 111.8 × 24.5 mm; 2.1 × 4.4 × 1.0 in (With BP-279)

Weight (approx.)

240 g; 8.5 oz (With BP-279)
