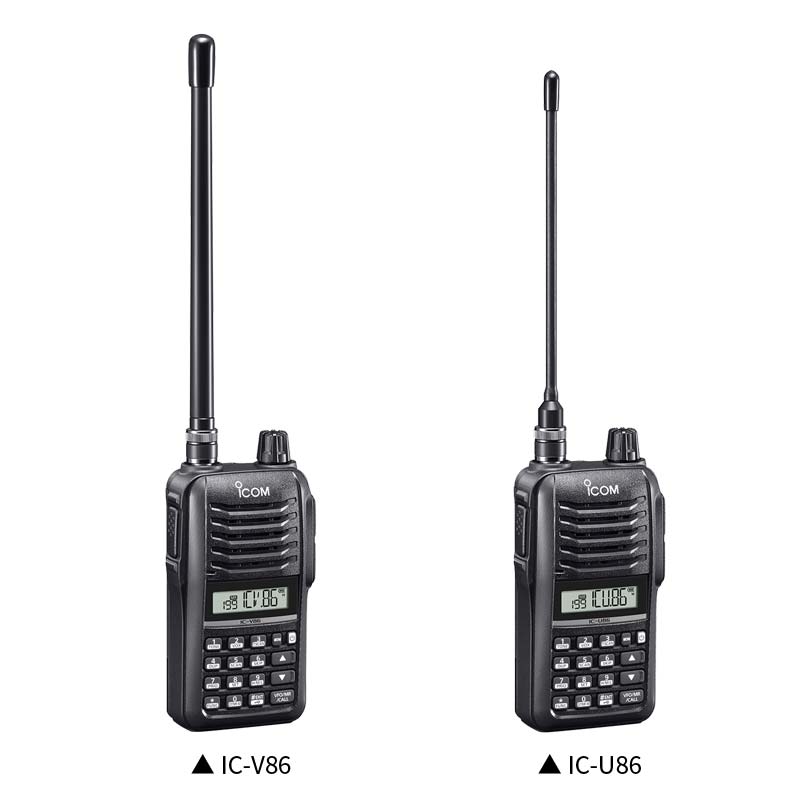

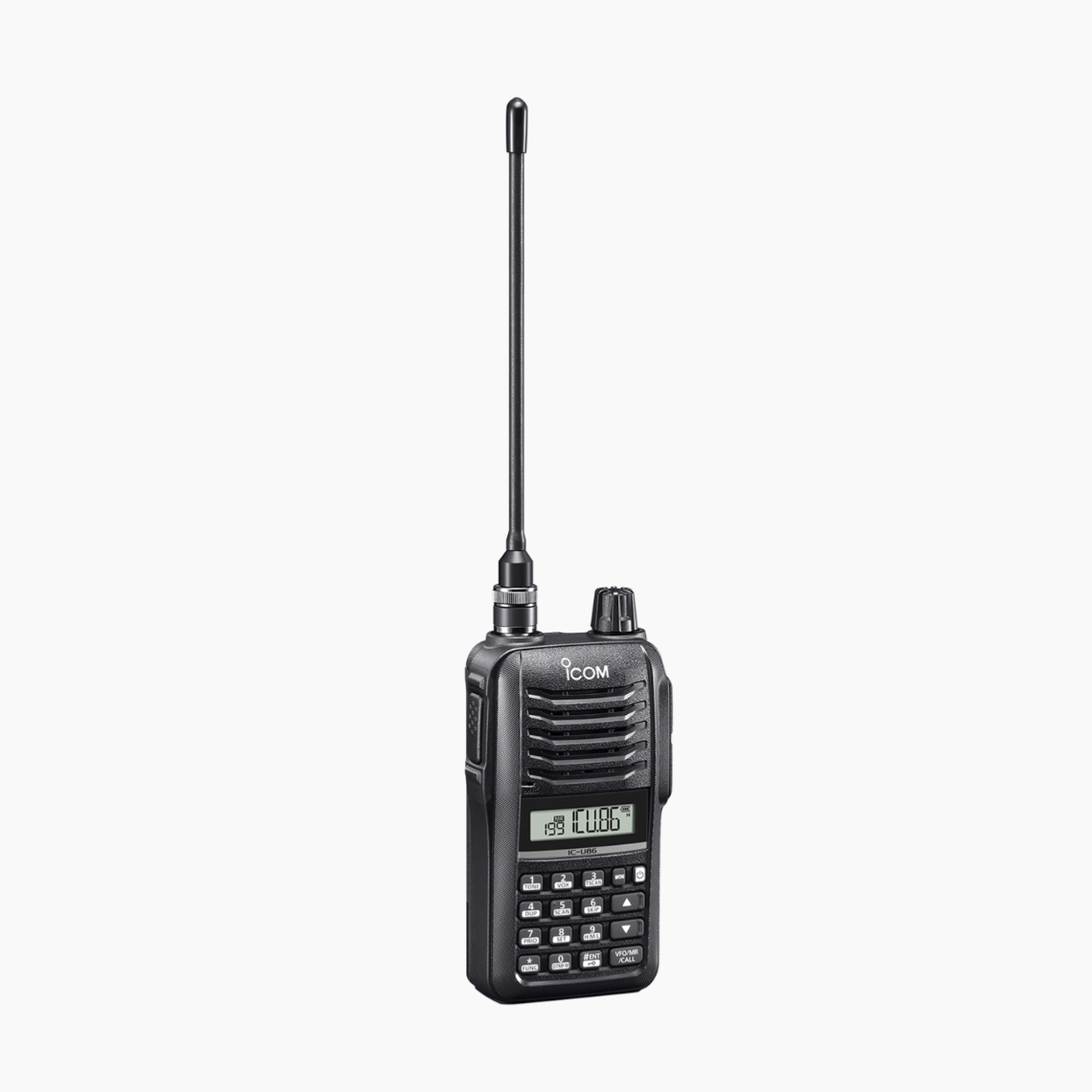

Icom IC-V86 / IC-U86
Icom IC-V86 / IC-U86 – 7 W Output Power and 1500 mW Audio
1500 mW Powerful Audio and 1.5 Times* Higher Sound Pressure
Optional 1500 mW Speaker-Microphone, HM-222HLWP
Dust-Protection, Water Resistance and a Tough Body (IP54 and MIL-STD 810G)
19 hours* of Long Lasting Battery Life
No PC Programming Necessary, Settings Changeable from the Radio*
Durable BNC Type Antenna Connector
Made in Japan Quality and Reliability
Other Features
- Audio volume/VFO mode/Memory channel mode can be changed with the rotary knob
- Supplied BC-240, battery charger with a charging control function that prolongs the life of the battery
- Integrated VOX function
- 200 memory channels, 1 Call channel and 6 scan edges
- Built-in CTCSS and DTCS encoder/decoder
- Priority, program, memory, skip and tone scanning
Performance Characteristics
Frequency range
VHF (136-174 MHz); UHF (403-470 MHz)
350-400 Mhz
Battery life (based on a 05 05 90 duty cycle)
18.5 hours in digital mode, 14.5 hours in analog mode
Standard battery chemistry type
Lithium Ion (2200mAH)
Frequency band
VHF, UHF, 350 MHz
Power output
1W/4W – UHF/350MHz
1W/5W – VHF
Physical Characteristics
Emergency button
None
Keypad
None
Display
No Display
Weight (with standard battery)
12.2 oz
Dimensions H x W x D (with standard battery)
5.0×2.4×1.8 in (127.7×61.5×44.0mm)
