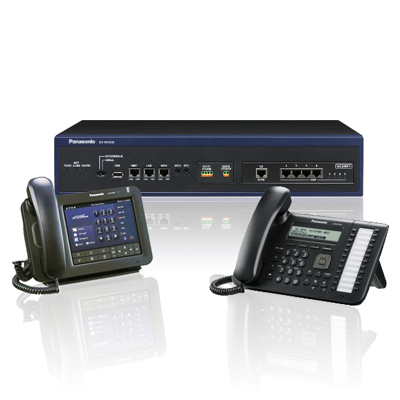

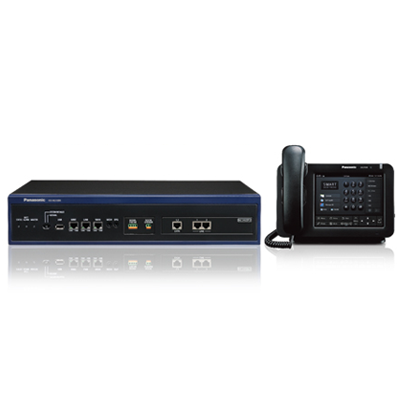

Panasonic KX-NS1000 IP Business PABX System
IP Networking Flexibility and Scalability
The KX-NS1000 fully supports IP, an open protocol for establishing real-time communication. Using IP effectively can result in compelling advantages such as improving user efficiency, and lowering communication costs.
Features
Easy Setup
Even at remote locations such as the homes of teleworkers, IP phones can be easily installed from a single site and used as extensions.
The same method can be used to extend a VPN to the entire office network for more secure communication.
Gradual IP Migration to Suit Your Budget
In addition to customers seeking total IP migration, the KX-NS1000 supports phased implementation of future IP migration for customers that wish to
utilize existing equipment.
Call Centre Solution
Voice guidance for customers and call data can be output to reports and analyzed for improved customer satisfaction.
Call data can be saved to an external server and exported as necessary.
Wireless Solutions
Softphones and desk phones can be paired and used with a single extension number, which leads to improved work efficiency.
Varied Terminal Line-up
A wide range of terminals and handsets are available to meet various user needs.
Main CPU
- 650 MHz Dual Core
Power Input
- 100 V AC to 130 V AC: 0.95 A/200 V AC to 240 V AC: 0.6 A; 50 Hz/60 Hz
Power Consumption (when fully mounted)
- 50 W (240 V: 132 VA, 200 V: 120 VA, 130 V: 104 VA, 100 V: 95 VA)
External Backup Battery
- External battery port is not supported.
- Support UPS: USB2.0: 1 port (Connector: Type A)
Memory Backup Duration
- 7 years
Dialling
– Trunk
- Dial Pulse (DP) 10 pps, 20 pps
- Tone (DTMF) Dialling with Caller ID (FSK/DTMF)
- 1600 Ω Maximum
– Extension
- Dial Pulse (DP) 10 pps, 20 pps
- Tone (DTMF) Dialling with Caller ID (FSK/DTMF)
- SLC1 port supports PFT in combination with the LCOT1 port connected to an analogue trunk
Mode Conversion
- DP-DTMF, DTMF-DP
Ring Frequency
- 20 Hz/25 Hz (selectable)
