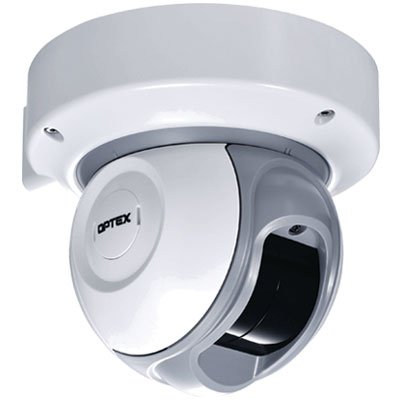

OPTEX
OPTEX is a world leading manufacturer of high performance sensing technologies. For more than 30 years, OPTEX has been trusted by thousands of customers worldwide for the accuracy and reliability of its detection systems.
- OPTEX offers a comprehensive and complementary range of detection systems to suit all applications – from critical infrastructure to residential. This is underpinned by consultative, sales and technical support provided by our UK- based sales and engineering team, all with considerable hands-on industry experience as well as expertise in our respective product ranges.
- The breadth of our offering means that we are best equipped to provide an entire detection solution on any single or multi-site project, as well as being able to recommend the most suitable system configuration to ensure the highest security level.
Installation location
- Indoor
Detection method
- Infrared Laser Scan
Laser protection class
- Class 1
Power input
- 10.5 to 30 VDC, PoE (IEEE802.3 af/at compliant)
Current draw
- 500 mA max. (12 VDC), 250 mA max. (24 VDC), 6W max. (PoE)
Mounting method
- Ceiling mount, Wall mount, Tripod mount, Pole mount (Option), Recess mount (Option)
Detection area
- 20 x 20 m, (approx. 65 x 65 ft.), 95 degrees
Detection range
- Radius 21m (approx. 68 ft.) at 10% reflectivity
Detection resolution/Response time
- 0.25 degrees / within 25 msec to 1 minute
- 0.125 degrees / within 100 msec to 1 minute (Indoor high resolution mode)
Mounting height(Vertical mode)
- Indoor: 2 m (6.7 ft.) or higher
Communication port
- Ethernet RJ-45 10BASE-T/100BASE-TX (Auto negotiation)
Protocol
- UDP, TCP/IP (Redwall Event Code), Http (Web setting), SNMP
Output
- 3 outputs, 28 VDC 0.2A max. N.O./N.C. Selectable
- (3 from Master alarm, Zone outputs, Trouble, Tamper.)
Alarm period
- Approx. 2 sec delay timer
Operating temperature
- -40 to 50 C degrees (-40 to 122 F degrees)
Dimensions (HxWxD)
- 146 x 160 x 160 mm (5.8 x 6.3 x 6.3 inch)
Weight
- 1.0 kg (2.2 lb)
