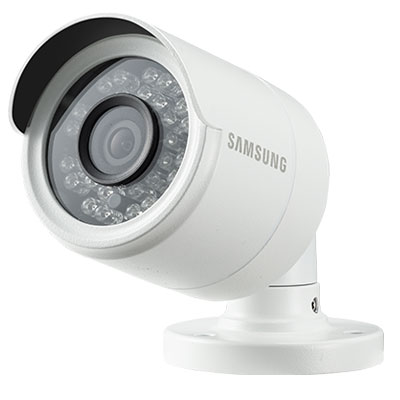

Samsung Wisenet ( HD Plus Camera )

WiseNet HD+ cameras and DVRs deliver 1080p Full HD images over coax cable

Incorporating AHD technology that can deliver superb quality HD images over existing coax cabling, WiseNet HD+ cameras and DVRs are designed to appeal to end-users who want to capture and record Full HD 1080p images, but are not yet ready to migrate from analogue to an IP network based video surveillance solution.

The competitively priced seven camera models and three DVRs in the WiseNet HD+ range offer an affordable upgrade path for legacy analogue systems, as well as new installations.

Key Features

  • Full HD (1,920 x 1,080 30fps) resolution
  • 0.25Lux@F2.1 (Color), 0Lux@F2.1 (B/W : IR LED on)
  • Built-in 4mm fixed lens
  • Day & Night (ICR), DWDR, SSNRIV, Motion detection
  • IR viewable length 20m
  • Transmission distance max. 500m
  • Easy installation (Plug & play)

Video
Imaging Device

  • 1/2.9″ 2M CMOS

Total Pixels

  • 2,000(H) x 1,121(V) 2.24M pixels

Effective Pixels

  • 1,984(H) x 1,105(V) 2.19M pixels

Scanning System

  • Progressive scan

Min. Illumination

  • Color : 0.11Lux (F1.4)
  • B/W : 0Lux (IR LED on)

S / N Ratio

  • 52dB (AGC off, Weight on)

Video Output

  • BNC (AHD, CVBS selectable)

Resolution

  • 1920 x 1080

Max. Framerate

  • 30fps@1080p, 30fps@720p
