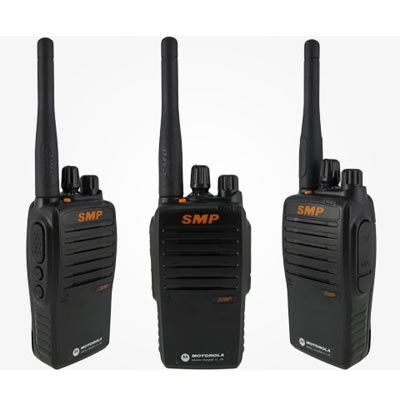

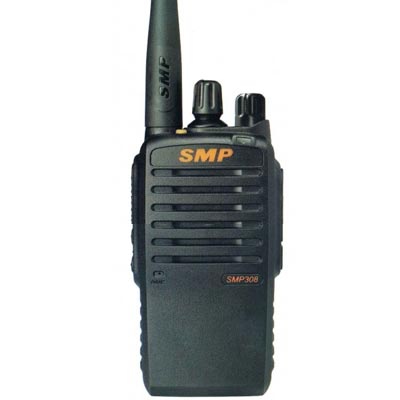

Motorola SMP 308

PCS Programming / Cable Clone DTMF Encode Chinese / English Channel Prompt 9 Level Squaelch Scan / Priority Scan Busy Channel Lockout Battery Save Frequency Reverse VOX Operation VOX Sensitive Setting VOX Delay Setting .

  • PCS Programming / Cable Clone
  • DTMF Encode
  • Chinese / English Channel Prompt
  • 9 Level Squaelch
  • Scan / Priority Scan
  • Busy Channel Lockout
  • Battery Save
  • Frequency Reverse
  • VOX Operation
  • VOX Sensitive Setting
  • VOX Delay Setting
  • Time Out Timer
  • Emergency Button
  • Low Battery Alert
  • Monitoring
  • Banwidth Selectable
  • Repeater Support

Genaral Specification

Frequency Range:

  • U01P: 400~470Mhz
    U04P: 330~400Mhz
    U10P: 450~520Mhz
    V01P: 136~174Mhz
  • Channel Capacity: 16
  • CTCSS / DCS: 50CTCSS /105 DCS
  • Power Supplu: DC7.4V
  • Operation Temp: -20℃~+55℃
  • Battery Type: Li-ion 1050mAh
  • Battery Life (5/5/90 duty cycle): ≥8 hrs
  • Dimension (HxWxT Excluded Antenna): 117x57x32mm
  • Weight (Include battery, antenna): 190g

Receiver

  • Sensitivity (12 dB SINAD): -119dBm(0.5µV)
  • Adjacent Ch Selectictivity: 60dB@25KHz
  • Intermodulation: >55dB
  • Hum and Noise: ≥40dB@25KHz
  • Spurious Emission: ≤7.5µW
  • Blocking: ≥85dB
  • Audio Distortion: ≤10%
  • Audio Power Output: 500mW@8Ω

Transmitter

  • RF Power Output:
    UHF H:4W / L:1W
    VHF H:5W / L:1W
  • Frequency Stability: ±2.5 PPM
  • FM Hum and Noise: ≥40dB@25KHz
  • Modulation Limited: ≤±5.0KHz@25KHz
  • Adjacent Ch Power: 65dBc
  • Modulation Character: ±3dB
  • Spurious and Harmonics: ≤7.5μW
  • Audio Distortion: ≤10%
