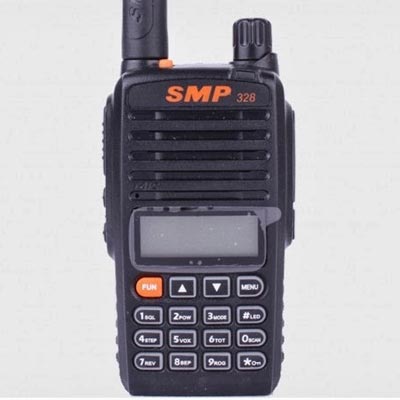

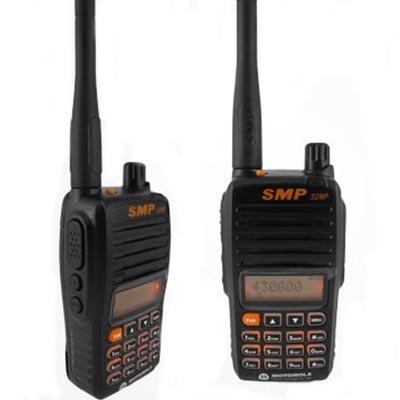

Motorola SMP 328

Best Used for Event Management / Hotels / Restaurants / Campaign Management / Port Management / Public Relations Activities / Construction / Other Industries

  • PCS Programming / Cable Clone
  • DTMF Encode
  • 9 Level Squaelch
  • Scan / Priority Scan
  • Busy Channel Lockout
  • Battery Save
  • Frequency Reverse
  • VOX Operation
  • VOX Sensitive Setting
  • VOX Delay Setting
  • Time Out Timer
  • Emergency Button
  • Low Battery Alert
  • Monitoring
  • Banwidth Selectable
  • Repeater Support
  • Frequency Step
  • LCD Display
  • 3 Displaying modes
  • Backlight
  • Numeric Keypad
  • Front Panel Programming
  • PTT ID Display
  • Frequency Offset
  • FM Radio
  • Power-On Voltage Display
  • Power-On Password

Genaral Specification

  • Frequency Range:
    U01P: 400~470Mhz
    U04P: 330~400Mhz
    U10P: 450~520Mhz
    V01P: 136~174Mhz
  • Channel Capacity: 99
  • CTCSS / DCS: 50CTCSS /107DCS
  • Power Supplu: DC7.4V
  • Operation Temp: -20℃~+55℃
  • Battery Type: Li-ion 1050mAh
  • Battery Life (5/5/90 duty cycle): ≥8 hrs
  • Dimension (HxWxT Excluded Antenna): 112x57x34mm
  • Weight (Include battery, antenna): 197g

Receiver

  • Sensitivity (12 dB SINAD): -119dBm(0.5µV)
  • Adjacent Ch Selectictivity: 60dB@25KHz
  • Intermodulation: >55dB
  • Hum and Noise: ≥40dB@25KHz
  • Spurious Emission: ≤7.5µW
  • Blocking: ≥85dB
  • Audio Distortion: ≤10%
  • Audio Power Output: 500mW@8Ω

Transmitter

  • RF Power Output:
    UHF H:4W / L:1W
    VHF H:5W / L:1W
  • Frequency Stability: ±2.5 PPM
  • FM Hum and Noise: ≥40dB@25KHz
  • Modulation Limited: ≤±5.0KHz@25KHz
  • Adjacent Ch Power: 65dBc
  • Modulation Character: ±3dB
  • Spurious and Harmonics: ≤7.5μW
  • Audio Distortion: ≤10%
